Small Tool, Great Impact | Specialized Wind Direction Laser Alignment Instrument: The "Invisible Guardian" of Accurate Wind Direction Calibration

On the towering nacelles of wind turbines and among the silent platforms of meteorological observation stations, a palm-sized black device is quietly revolutionizing the precision of wind direction measurement. The XFC2 specialized wind direction laser alignment instrument, with its second-level calibration capability, has become a key tool in ensuring data accuracy in the new energy and meteorological fields.

Precise Adaptation to Two Scenarios, the "Ruler" for Zero Error

Whether it is the north calibration on a stationary platform or the zero-point alignment of a wind turbine's dynamic system, the XFC2 laser alignment instrument can simplify complex tasks. Its design directly addresses industry pain points - installation deviations of wind direction sensors will directly lead to systematic errors in data, just like a misaligned compass in navigation, which will cause a series of subsequent decision-making deviations.

Scenario 1: A Compass on a Stationary Platform

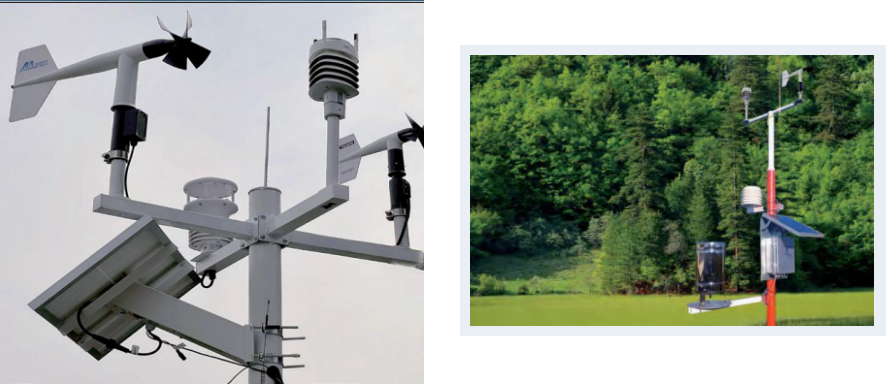

In fixed scenarios such as meteorological stations and environmental monitoring points, the laser alignment instrument acts as a precision compass. Installers only need to use the built-in laser crosshair to align the sensor's N direction with the north-pointing line calibrated by the compass, so as to achieve precise alignment between the sensor and the geographical north. This "laser ruler" replaces the traditional naked-eye judgment, making the wind direction axis deflection error close to zero.

Scenario 2: A Dynamic Calibrator for Rotating Systems

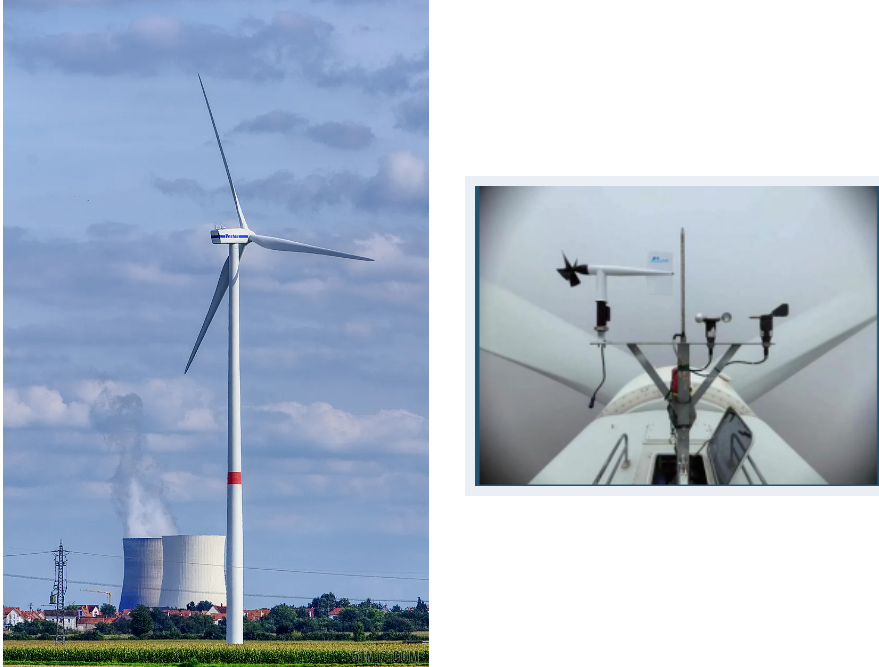

Facing platforms that rotate with the yaw system such as wind turbines, the laser alignment instrument shows more sophisticated adaptability. By tracking the central axis of the nacelle or its parallel lines, the laser crosshair is accurately matched with the reference line to ensure that the sensor's wind direction axis is always synchronized with the system's zero point. This "dynamic alignment" technology allows each wind turbine to accurately capture the main wind direction, effectively improving power generation efficiency.

Laser Axis Locking Hinge: The Unique Structure Behind the Small Tool

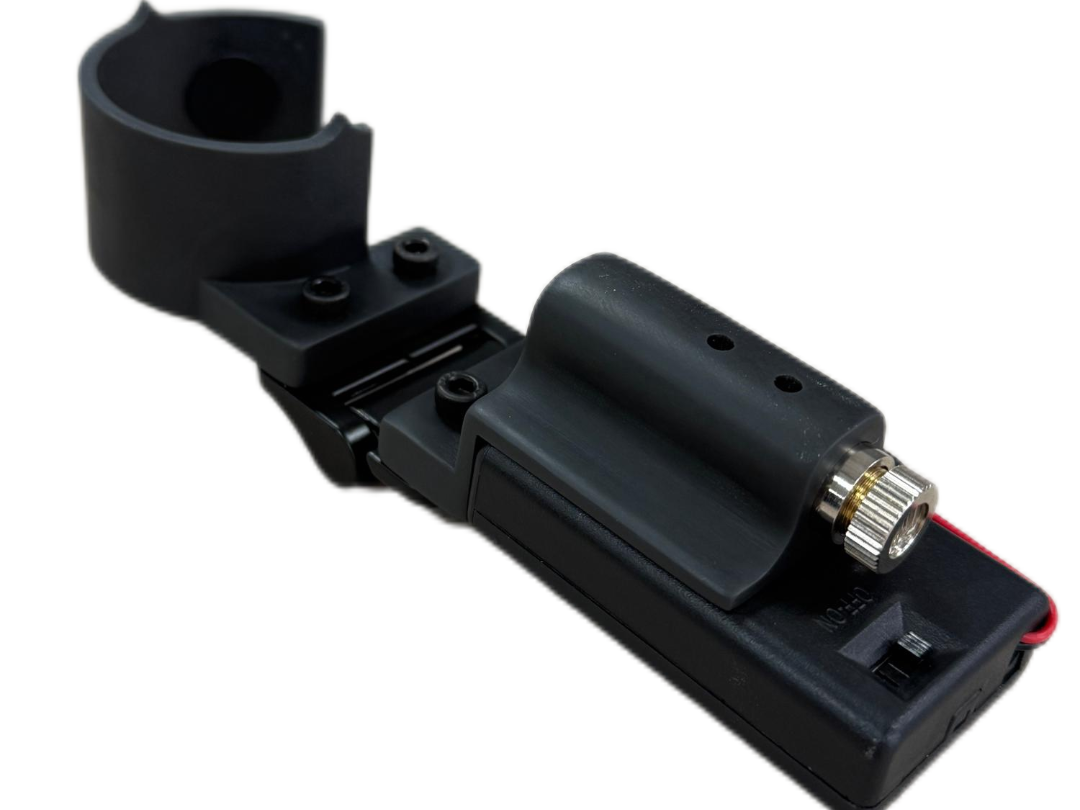

The core of the XFC2 lies in its unique laser axis locking mechanism. When the pointer is aligned with the sensor's N direction, the hinge structure allows the laser crosshair to move only along the wind direction axis, forming a geometric coordinate system with rigid constraints. This design cleverly simplifies three-dimensional space calibration into two-dimensional linear alignment, enabling even non-professionals to complete precise calibration through the intuitive operation of "seeing the light and aligning the line".

Experimental Verification: From "Manual Experience" to "Optical Precision"

A comparative test by a wind power operation and maintenance team showed that the average deviation of wind direction data of sensors installed using the traditional visual method reached 8°; while after calibration with a specialized alignment instrument, the deviation was reduced to within 0.5°. This precision leap is directly reflected in power generation - the annual power generation loss of a single unit is reduced by nearly 120,000 kWh. At an offshore wind farm in Jiangsu, an operation and maintenance engineer sighed: "A process that used to require hours of repeated debugging can now be done by rotating the alignment instrument and locking the clamp when the laser lines overlap."

A Small Tool that Leverages Great Value

In the fields of new energy and meteorological monitoring, data accuracy is synonymous with productivity. The XFC2 laser alignment instrument, with a size smaller than a palm, solves the long-standing problem of installation standardization in the industry. It is not only a tool but also a bridge connecting design accuracy and real working conditions - at the moment the laser crosshair lights up, a precise bond of trust is established between the tens of meters high wind turbine and the precision sensor.

In the era of precision, every detail needs to be controlled to the extreme.
